系列类型Series type | 单10寸线阵列音箱 10-inch line array speaker | 单15寸吊挂式线阵列超低音箱 Single 15-inch hanging line array subwoofer |
型号model | LQ210 | LQ215S |
单元配置System composition | LF 1×10” HF 1×1.75in | LF 1×15” |
频响Frequency response | 60Hz-20KHz | 35Hz-350Hz |
灵敏度Sensitivity | 103dB | 100dB |
最大声压The maximum sound pressure | 133dB | 135dB |
功率(连续)RMS power | 500W | 600W |
功率(峰值)Peak power | 1000W | 1200W |
标称阻抗impedance | 8Ω | 8Ω |
覆盖角度Dispersion | 120°H×10°V | 360° |
吊挂Hanging. | LQ专用预装件Special pre-assembly | LQ专用预装件Special pre-assembly |
底座Bottom sit | ... | ... |
连接器Connector | 2×speakon NL4MP | 2×speakon NL4MP |
深×宽×高Deep × width × height | 370×550×277mm | 560×550×440mm |
重量weight | 20Kg | 38kg |
此款可选择有源、无源线阵列音箱(Optional active and passive line array speakers)
技术参数Technical Parameters:
产品特性:

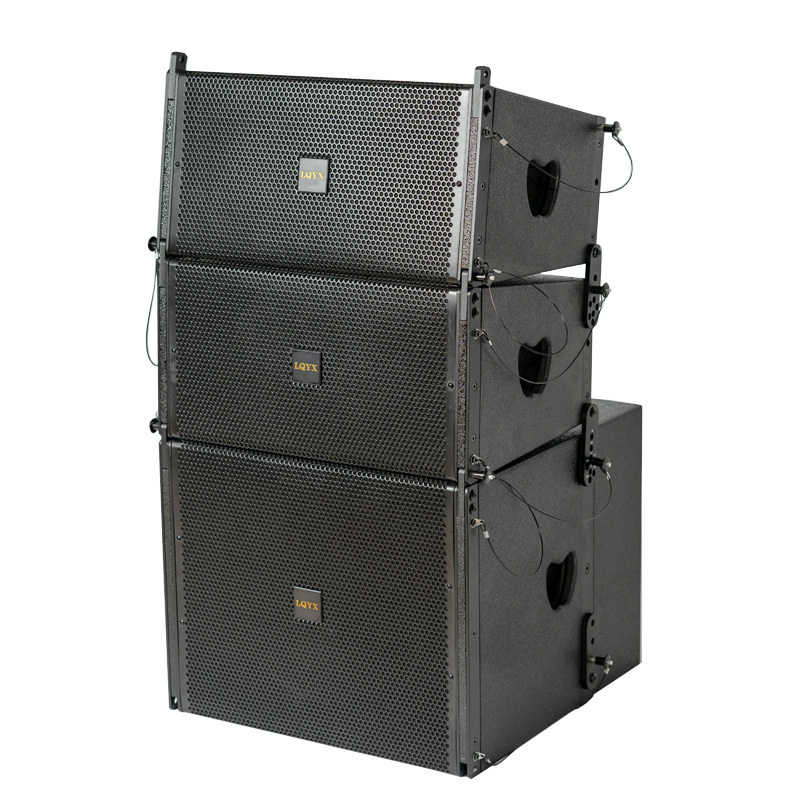

LQ200系列是自主研发全新推出多功能用途的线阵列专业音箱,能够满足各种不同类型的场合应用需求,独特新颖的外观设计、功能丰富的箱体结构、精心调试的声音特性。箱体采用优质多层桦木夹板制作,箱体表面喷涂耐磨油性光滑黑色涂料并具有抗水防腐蚀作用,坚硬的外表涂层能承受各种摩擦和碰撞,经久耐用,面网贴有高透声率声学海绵,防水尘垢及雨水的侵蚀,采用特殊设计的线阵玻璃钢高音号角,提高了输出声压,配备了精准的吊挂件度数孔能方便简单的音箱角度调整,使现场声音更均匀,覆盖范围更宽广,整体音色细腻层次感丰富平衡自然。
Product Features:
The LQ200 series is an independent research and development of a new multi-functional line array professional speaker that can meet the needs of various types of applications, unique and novel design, rich box structure, and carefully tuned sound characteristics. The box body is made of high-quality multi-layer birch splint. The surface of the box body is sprayed with wear-resistant oily smooth black paint and has water resistance and corrosion resistance. The hard surface coating can withstand various types of friction and collisions, durable, and the surface net is affixed with a high permeability acoustic sponge., Waterproof grime and rainwater erosion, the use of a specially designed line array of fiberglass treble horn, improved the output pressure, equipped with accurate hanging pieces degree can easily adjust the simple sound box angle, making the sound on the scene more uniform, coverage The range is wider, The overall timbre is delicate and layered, rich and balanced.
适用:中小型室内外多种舞台演出需求场合、酒店、音乐餐吧、会议多功能厅、吊挂固定工程等专用产品
Applicable:Small and medium-sized indoor and outdoor stage performances require special products such as occasions, hotels, music bars, conference halls, and hanging fixed engineering bar, conference hall, hanging fixed engineering and other special products
